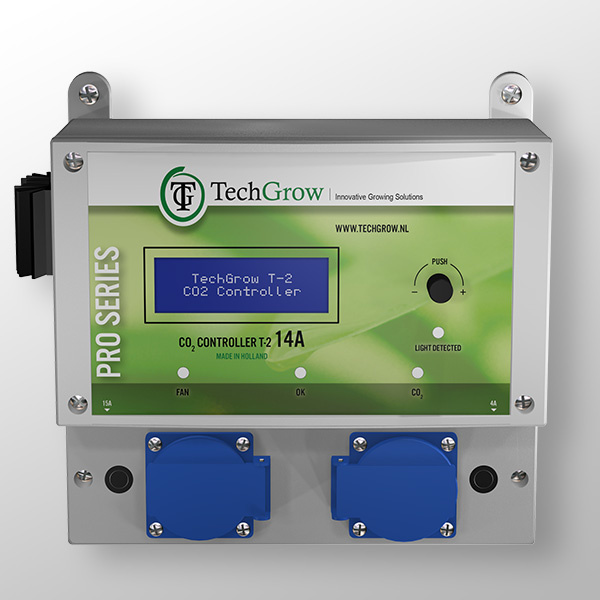

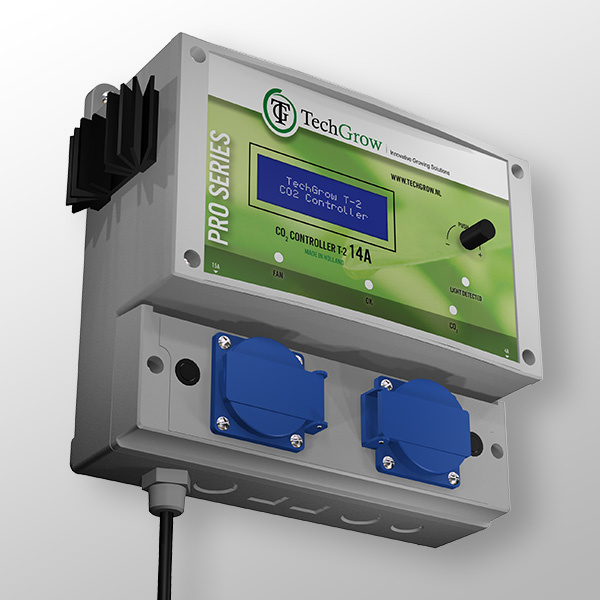

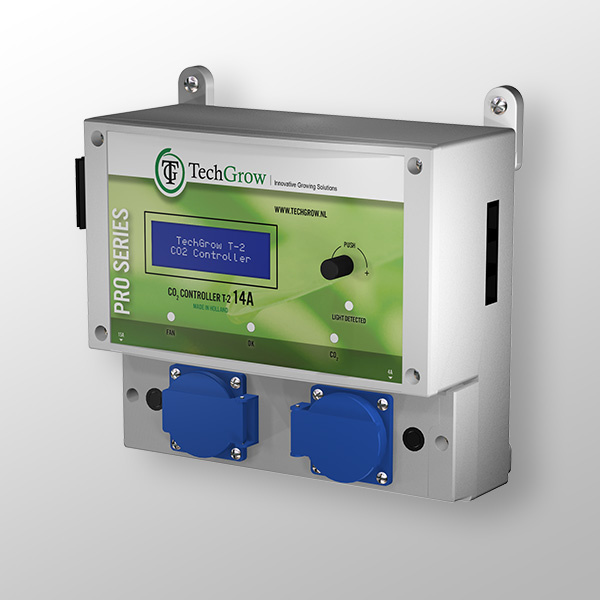

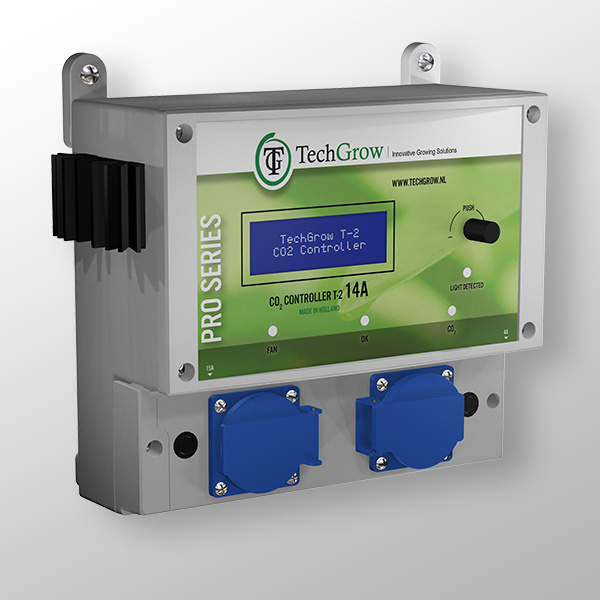

T-2 Pro CO ₂ Controller

The T-2 Pro CO ₂ Controller is the expanded version of the T-1 Pro CO ₂ Controller, and has an integrated climate controller as an additional tool. It can therefore control both the CO ₂ content and the temperature and humidity in your room. This unique combination allows you to dose CO ₂ during the day and allow your fan to extract excess CO ₂ and moisture produced by your plants during the night. In addition, the TechGrow T-2 Pro CO ₂ Controller keeps the temperature in your room up to date.

The measurement range of this CO ₂ controller ranges from 300 to 2000 ppm or from 300 to 10000 ppm, selectable by the user. The connected sensor provides automatic switching between day and night mode.

The T-2 Pro CO ₂ Controller is fully equipped with, among other things, a built-in dosing retarder, timer, dosing counter and a memory to indicate the minimum and maximum CO ₂ value in a room. In addition, this CO ₂ controller has a unique calibration function for a perfect adjustment of your fan. Due to the special hardware and software, the fan control functions continuously and silently.

The T-2 Pro CO ₂ Controller is housed in a robust, splash-proof housing and is easy to operate with 1 push and turn button. You can read the information comfortably from the bright and large LCD display.

NB:

The T-2 Pro CO ₂ Controller is supplied without sensor.

Recommended sensor: S-4 sensor / 0-2000 ppm.

Versions / versions: 4.5A-14A

Characteristics

• Measures and regulates CO2, temperature and humidity simultaneously, during the day and at night.
• Also extracts the excess CO2 during the night.
• Shows the minimum / maximum values of connected sensor in the display.
• Adjustable from 300 to 2,000 ppm or from 300 to 10,000 ppm.
• Adjustable dosing retarder and timer.
• Automatic CO2 dosing counter.
• Dose log (dose log) of the dose counter for the past 7 days and display of the total (cumulative) dose time.
• Pulse dosing for the dosed addition of CO2.
• Built-in calibration function for CO2 and temperature.
• The display is refreshed every second.
• Indication LEDs switch on with CO2 dosing, light detection and stable climate.
• All set, hysteresis and alarm values of the sensor can be set separately.
• Quick menus for a smooth overview of all settings.
• Suitable for connecting fans up to 5,000 m3 / hour (7 A) and up to 10,000 m3 / hour (14 A).
• The fan control has 2 setting options: automatic or manual.
• Fan and CO2 relays are fused separately.
• Memory for power outages for all settings.
• The controller automatically switches between day and night mode through the light sensor.
• Connection of the sensor with standard network cable (UTP).
• Various sensors are available separately (0-2,000 ppm / 0-10,000 ppm).
• Possibility to connect the TechGrow Datalogger (DL-1).

Technical specifications

• Power supply: 100 to 240 V
• Recording: 3 W (with sensor, without CO2 source)
• Maximum fan capacity: 7 A / 1700 W (up to 5,000 m3 / hour) or 14 A / 3400 W (up to 10,000 m3 / hour)
• Maximum capacity CO2 source: 6 A
• Maximum total capacity: 16 A
• Setting range CO2 set: 300 to 2,000 ppm (with 2,000 sensor) / 300 to 10,000 ppm (with 10,000 sensor)
• Setting range CO2 +/-: 20 to 200 ppm (advice 50 ppm hysteresis)
• Measurement time: 1 measurement per second
• Setting range RH set: 11% - 100% relative humidity
• Setting range RH: +/- 1% - 30% relative humidity
• Setting range TMP set: 15.0 - 35.0 ° C
• Setting range TMP: +/- 1.0 - 5.0 ° C
• Measurement time: 1 measurement per second
