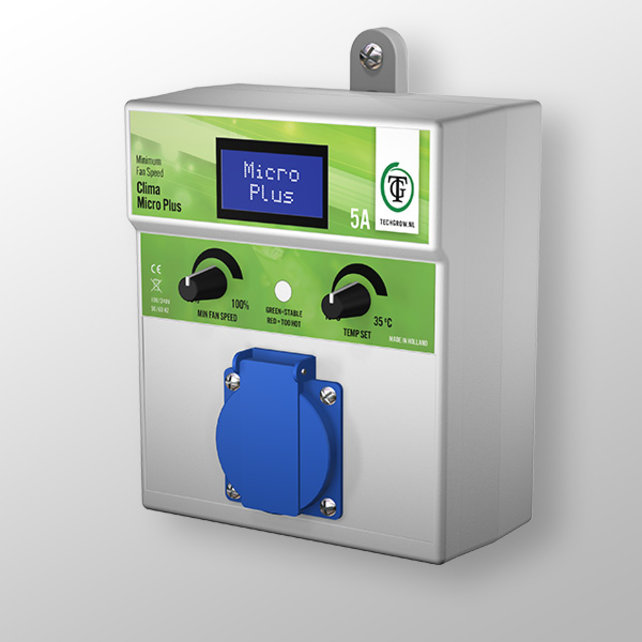

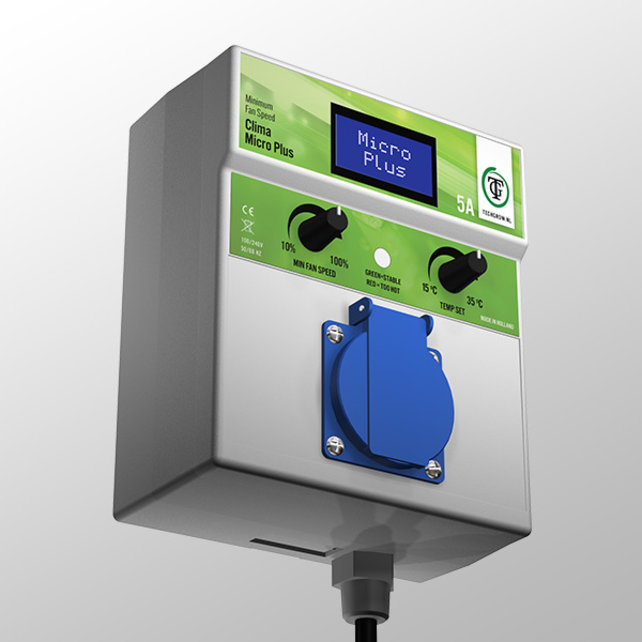

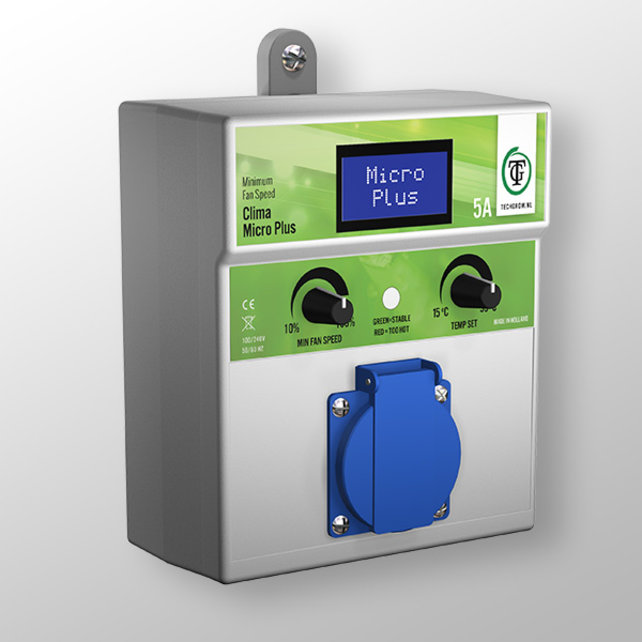

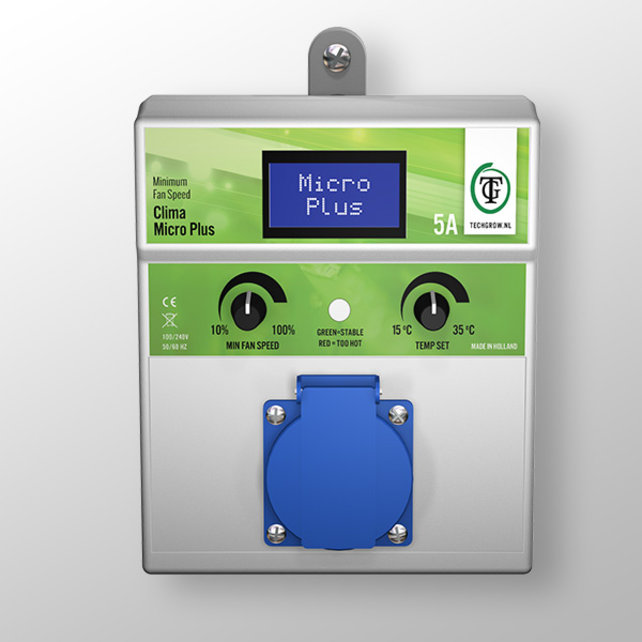

TechGrow Clima Micro Plus 5A (Minimum speed) (excluding temp probe)

Clima Micro Plus Minimum Fan Speed

With the Clima Micro Plus Minimum Fan Speed you control the minimum rotational speed (speed) of your fan to get or adjust the temperature in your room to the desired level.

to hold.

This efficient controller is easy to operate with two knobs. This sets the minimum speed (0 - 100% of the capacity) of your fan and the desired room temperature (between 15 ° C and 35 ° C). The Clima Micro Plus Minimum Fan Speed also has the option to set a hysteresis (1 ° C - 5 ° C).

The clear display shows the current room temperature, as well as the desired temperature, fan speed, minimum and maximum measured temperature, and hysteresis. The color of the LED shows whether the room has a stable climate or too high a temperature.

Characteristics

• The Clima Micro Plus Minimum Fan Speed can measure and display the current temperature value of connected sensors, and record and display the minimum / maximum values
• This controller controls the minimum fan speed to reach or maintain the desired temperature
• Indicator LED for display of stable climate or high temperature
• Minimum fan speed and temperature setpoint are saved in the event of a power failure
• Temperature setting range: 15 ° C - 35 ° C
• Hysteresis setting range: 1 ° C - 5 ° C
• Minimum fan speed setting range: 10% - 100%
• The display is updated every second
• Automatic switch-off of the display backlight after 60 seconds
• Automatic detection of cable break or poor contact with the connected sensors
• 2 UTP ports
• Available in the version: 5A
• Easy-to-replace fuse (spare fuse included)
• Minimum required sensor: TempProbe
• Various sensors are available separately
• Possibility to connect the TechGrow Datalogger (DL-1)
