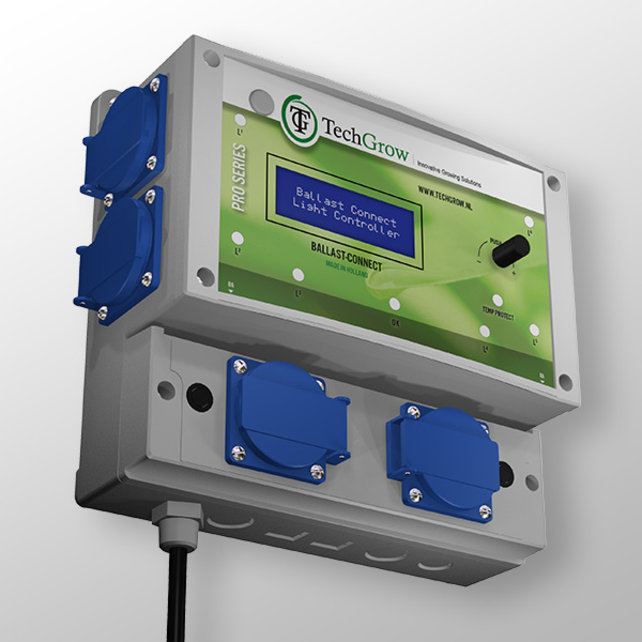

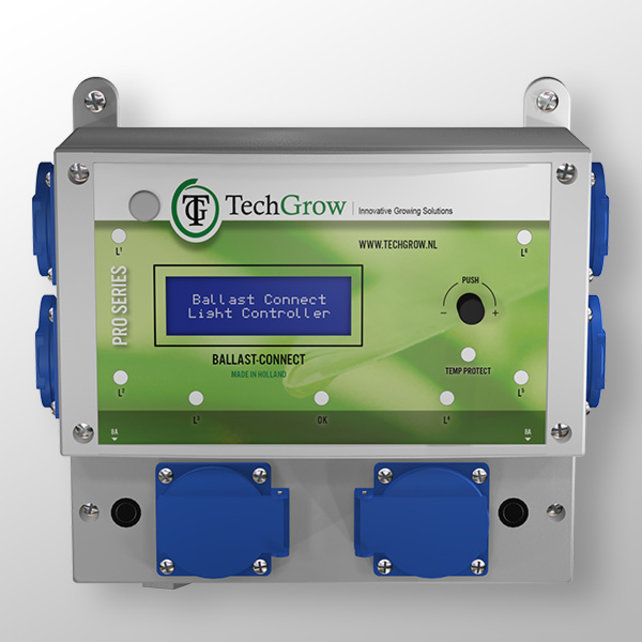

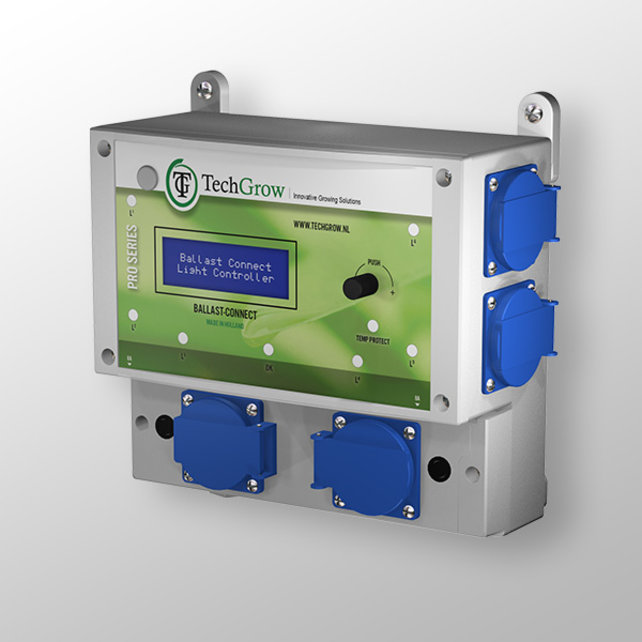

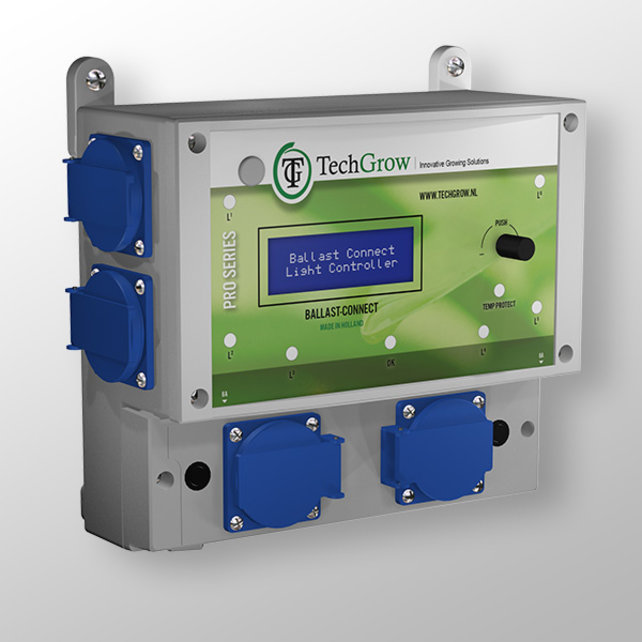

TechGrow Ballast connect 6x600 (excluding temp probe)

Ballast Connect 6 X 600

The Ballast Connect is a digitally controlled relay controller that can switch 6 x 600 W.
Each socket is individually controlled by hybrid relays: during the switching moment the hybrid relays will switch on every 5 seconds.

Thanks to the digital control and the 6 relays, this controller offers you many advantages. For example, the Ballast Connect has temperature protection, start-up delay, an ammeter, a 24-hour timer, an asymmetrical timer and a logging function, with which you can view different events. The built-in battery allows you to check at what time the possible power outage has been.

This controller is supplied without Temp Probe.

Characteristics

• Suitable for 6 x 600 W
• Makes no switching noise
• The lamps are switched individually
• Choice of 2 digital clocks (24-hour / asymmetrical)
• Adjustable temperature protection
• In the event of overheating, the lamps are switched off one by one (maximum 5)
• Built-in ammeter
• Adjustable amperage limit for surge protection
• Adjustable switch-on delay
• All settings are saved in the event of a power failure
• Display for minimum / maximum temperature
• Various Temp Probes are available separately (not included)

Technical specifications

• Power supply: 100 to 240 V
• Mains frequency 50 to 60 Hz
• Recording: 3W
• Fuse: 2 x 15A
• Switching capacity: 3600W / 16A, maximum 24A.
• A maximum of 4A can be switched per outlet.
• Power cord: 3 x 2.5 mm
